Description

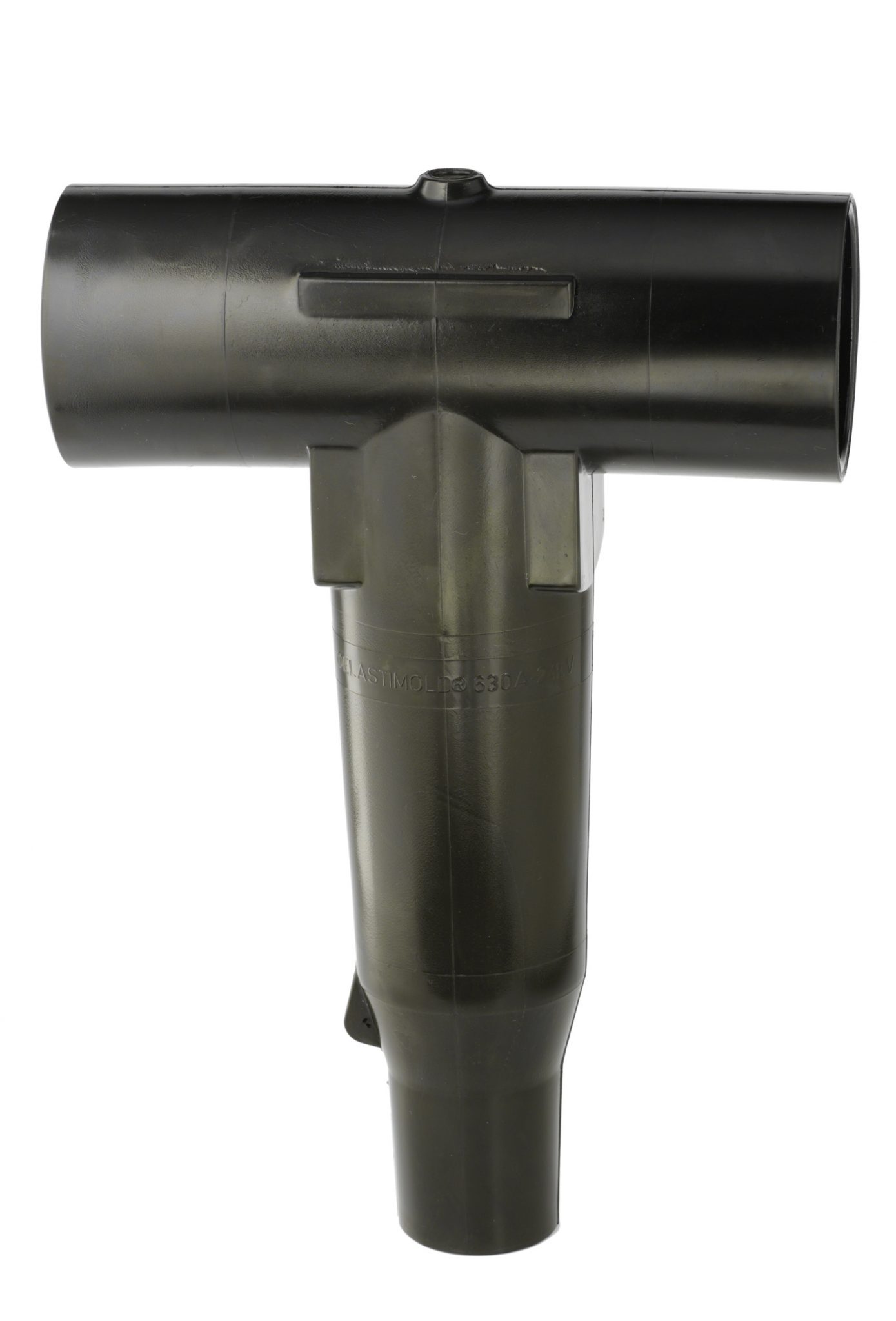

676LRA T connector is designed for interface D and covers voltages from 12 to 24kv with a maximum conductor size of 630mm2. This separable connector is a symmetrical T and uses a M16 stud to connector to the 1250amp bushing. Designed to connect polymeric insulated cables with a copper wire screen but can be used on armoured, copper tape screen cables with the use of additional accessories.
Technical Characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
- The screen break design enables cable outer sheath testing without removing or dismantling the connector
- The 440TB separable connector meets the requirements of CENELEC HD629.1
Please ensure full cable details are known at time of order so correct product selection can be made, Specific requirements can be found on the product data sheet attached.
