Description
A range of corner rollers to suit your application.

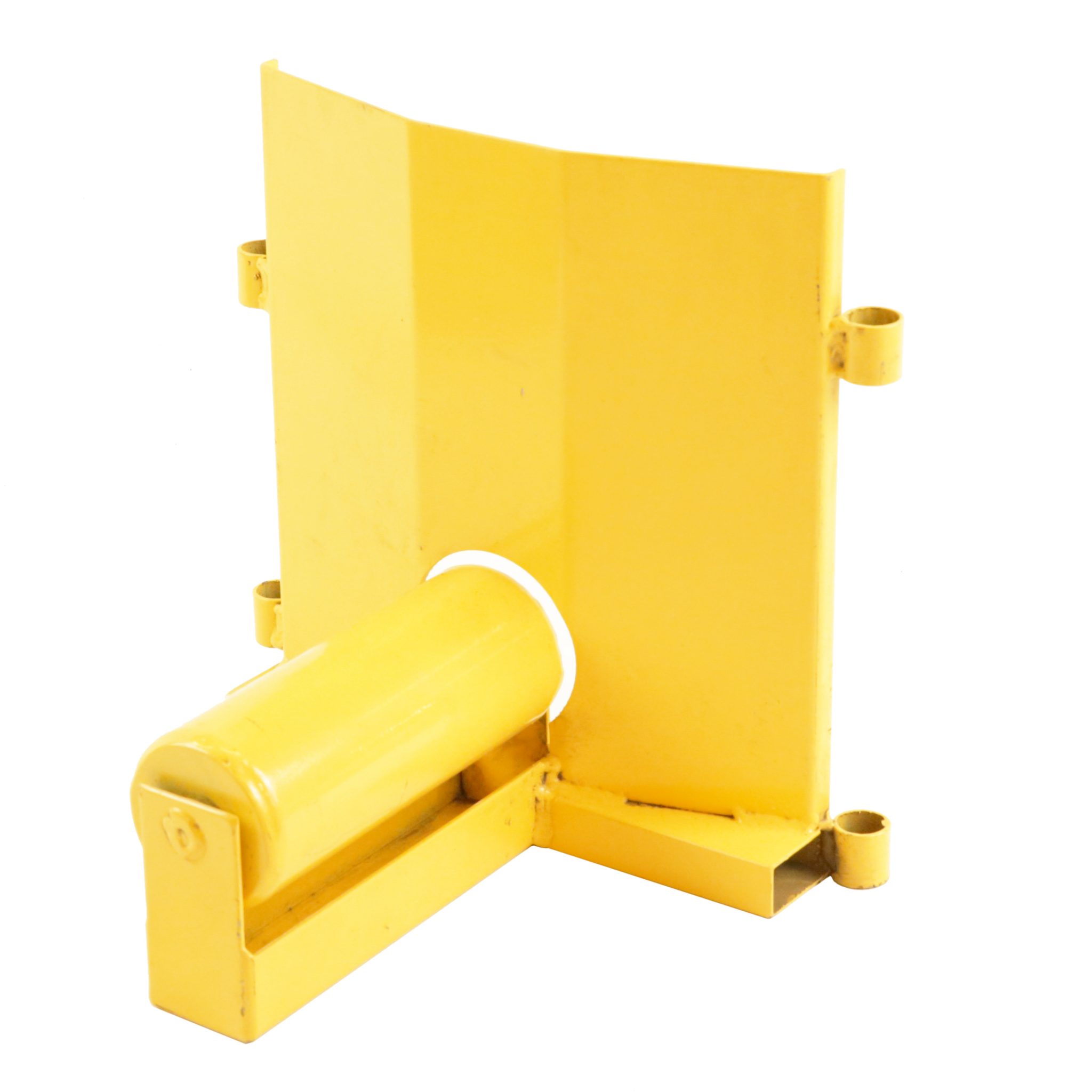

BR1
The BR1 is a medium duty Corner Cable Roller for use in most cable laying applications. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations
- Medium duty corner roller from pressed steel sections
- 76mm Diameter Tubular Horizontal Steel Roller
- 3mm pressed vertical skid plate
- Oil impregnated maintenance free bushes fitted
- Painted Finish
- Universal link pin mount positions
- Size 30cms Long x 25cms Wide x 31cms High
- Weight 5 Kg
BR2
The BR2 is a heavy duty Corner Cable Roller for use in most cable laying applications. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations.
- Heavy duty corner roller from pressed steel sections
- 76mm Diameter Tubular Steel Rollers
- Oil impregnated maintenance free bushes fitted
- Painted Finish
- Universal link pin mount positions
- Size 15cms Long x 29cms Wide x 29cms High
- Weight 6 Kg

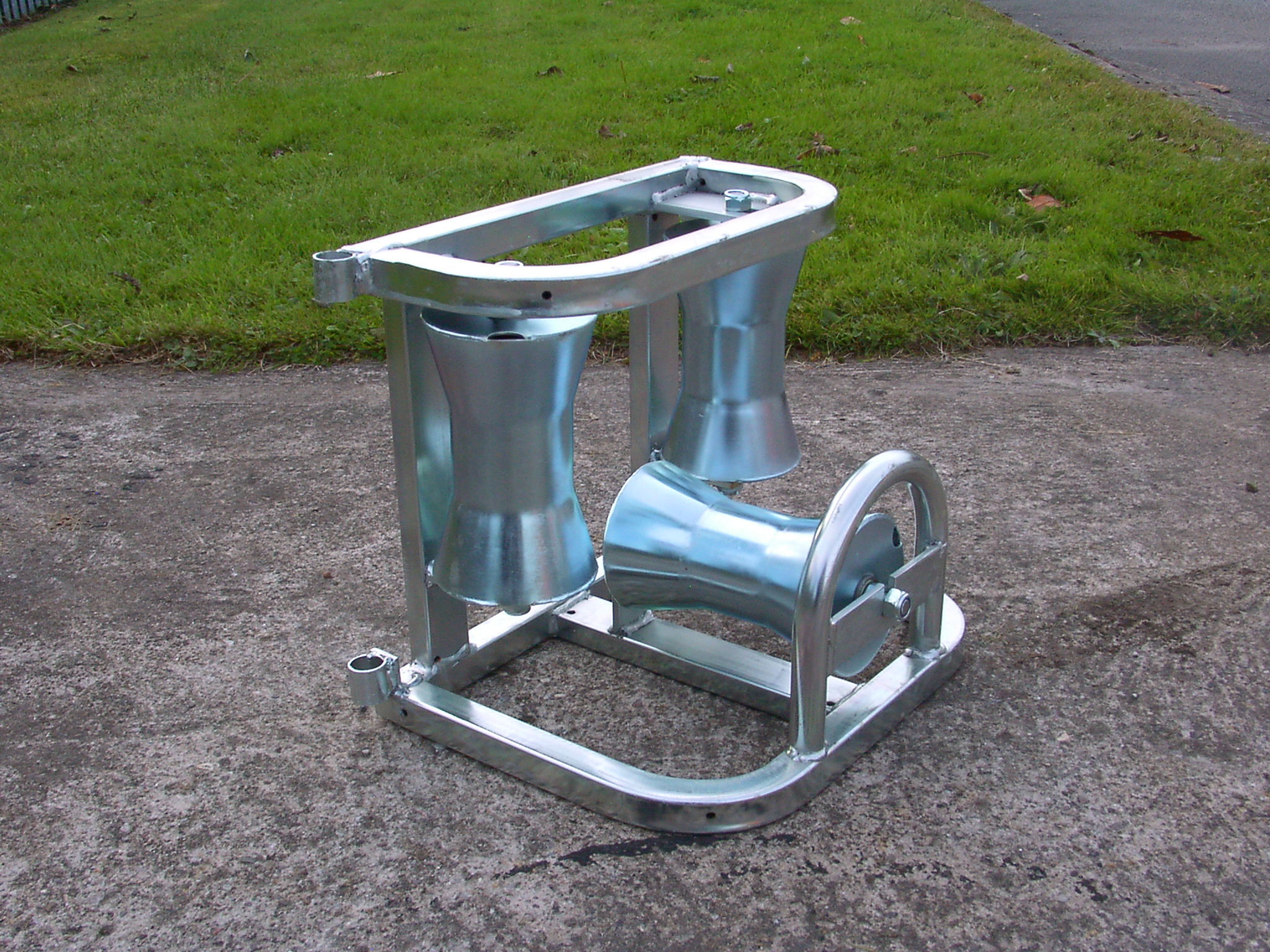

BR3
The BR3 is a heavy duty Triple Corner Cable Roller for use in most cable laying applications. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations.
- Heavy duty corner roller from tubular sections
- 3 off 110mm Diameter Large Waisted Steel Rollers*
- Sealed roller bearing fitted
- Zinc Plated Finish
- Universal link pin mount positions
- Size 36cms Long x 30cms Wide x 32cms High
- Weight 8.5 Kg
BR4
The BR4 is an light duty Skid Plate for use in conjunction with the BR1-BR3 range. This is an economical way to form a full bend when utilising other corner cable rollers. All the Bend Roller range have the same link points to facilitate various bend/roller configurations.
- Light duty Skid Plate manufactured from 3mm plate
- Zinc Plated/Zintec Finish
- Universal link pin mount positions
- Size 87cms Long x 15cms Wide x 29cms High
- Weight 6.5 Kg

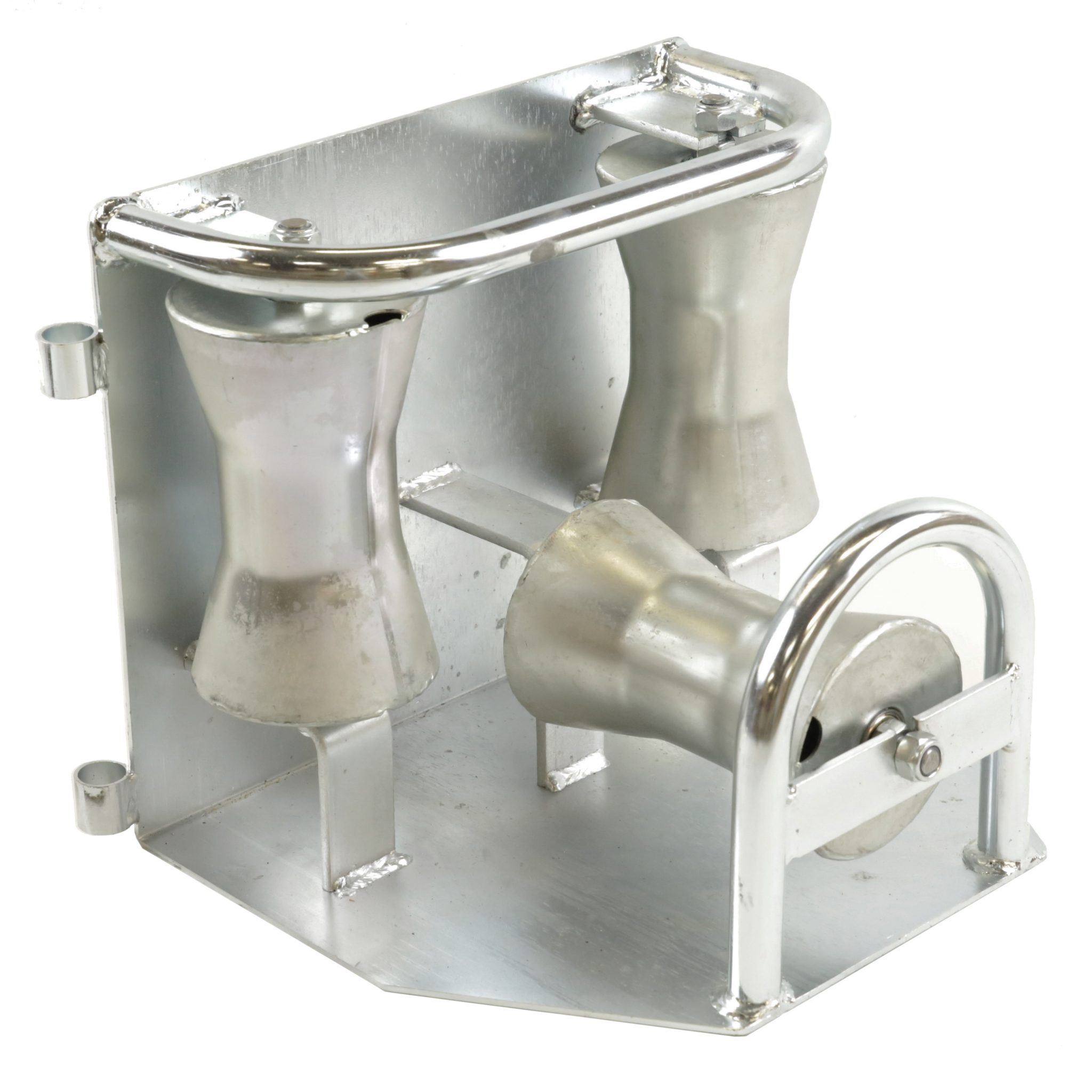

BR5
The BR5 is a heavy duty Triple Corner Roller for use in most cable laying applications and particularly on Sand and soft ground conditions. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations.
- Heavy duty corner roller from steel plate sections
- 3off 110mm Diameter Large Waisted Steel Rollers*
- Sealed roller bearing fitted
- Zinc Plated Finish
- Universal link pin mount positions
- Size 36cms Long x 28cms Wide x 32cms High
- Weight 10 Kg
