CITI – 1C XLPE Indoor Cold Shrink Termination – 11kV

Data/Specifications

Part NumberSize at 11kvSize at 24kvMin Diameter Over Insulation
CITI.240235-95mm210-95mm213.8mm
CITI.240395-240mm250-240mm218.4mm
CITI2404240-300mm2185-300mm225.3mm
SKU: f86789bdf4bb Category:

Description

CITI – 1C XLPE Indoor Cold Shrink Termination – 11kV

Indoor cold shrink termination ranging from 35mm2 – 1000mm2

The termination kit is used for indoor terminating of max. 24 kV cables with XLPE insulation and copper wire shield. The kit is suitable for single core cables, containing the components for three cores.

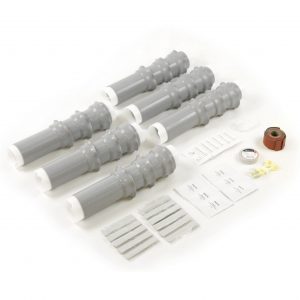

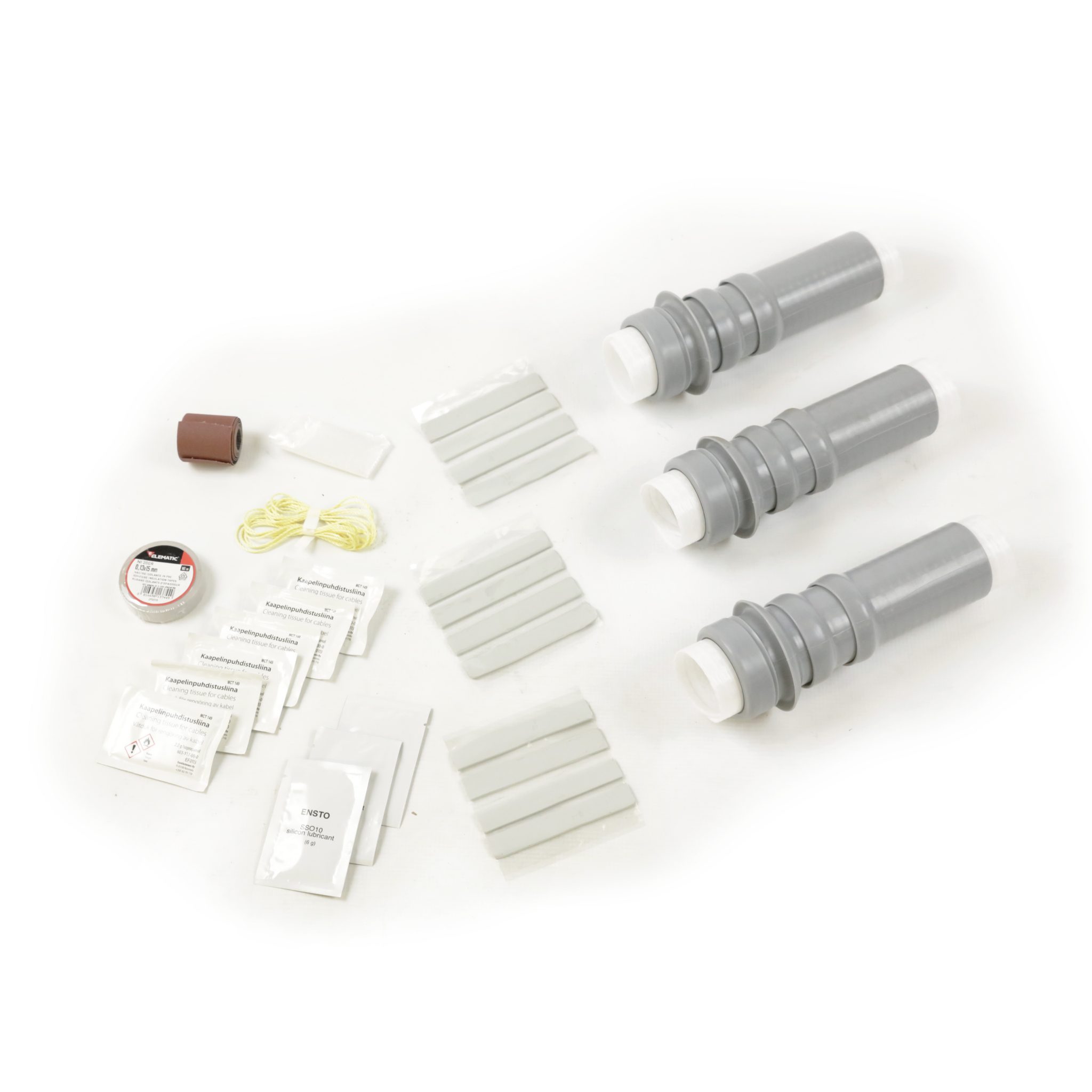

The kit includes: Mastics, tapes, cleaning and grinding materials, insulating anti-tracking tubes with sheds.
