CITI – 1C XLPE Indoor Cold Shrink Termination – 33kV

Data/Specifications

Part NumberSize Range at 33kvSize Range at 42KvMin Diameter Over Insulation
CITI.420210-95mm210-95mm218.4mm
CITI.420370-300mm250-300mm225.3mm
CITI.4204185-400mm2185-400mm231.1mm
CITI.4205400-630mm2400-630mm231.1mm
CITI.4206630-1000mm2630-1000mm236.8mm
SKU: 8854fd575a83 Category:

Description

CITI – 1C XLPE Indoor Cold Shrink Termination – 33kV

33kv Indoor Cold Shrink termination for size range 10-1000mm2

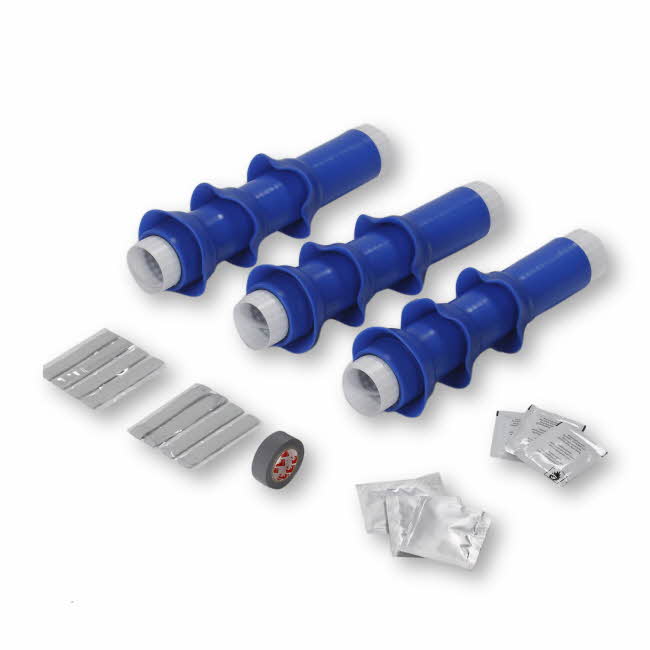

The termination kit is used for indoor terminating of max. 42 kV cables with XLPE insulation and copper wire shield. The kit is suitable for single core cables, containing the components for three cores.

The kit is without cable lugs. The kit includes: mastics, tapes, cleaning and grinding materials, insulating anti-tracking tubes with sheds.
