COTI – 1C XLPE Outdoor Cold Shrink Termination – 11kV

Data/Specifications

Part NumberSize Range 11kvSize Range 24kvMin Diameter Over Insulation
COTI.240235-95mm210-95mm218.4mm
COTI.240395-240mm250-240mm225.3mm
COTI.2404240-300mm2185-300mm231.1mm
COTI.2405400-630mm2400-630mm231.1mm
COTI.2406630-1000mm2630-1000mm236.8mm
SKU: 644837427204 Category:

Description

COTI – 1C XLPE Outdoor Cold Shrink Termination – 11kV

11kv Outdoor cold shrink termination for 35-1000mm2

The termination kit is used for outdoor terminating of max. 42 kV cables with XLPE insulation and copper wire shield. The kit is suitable for single core cables, containing the components for three cores.

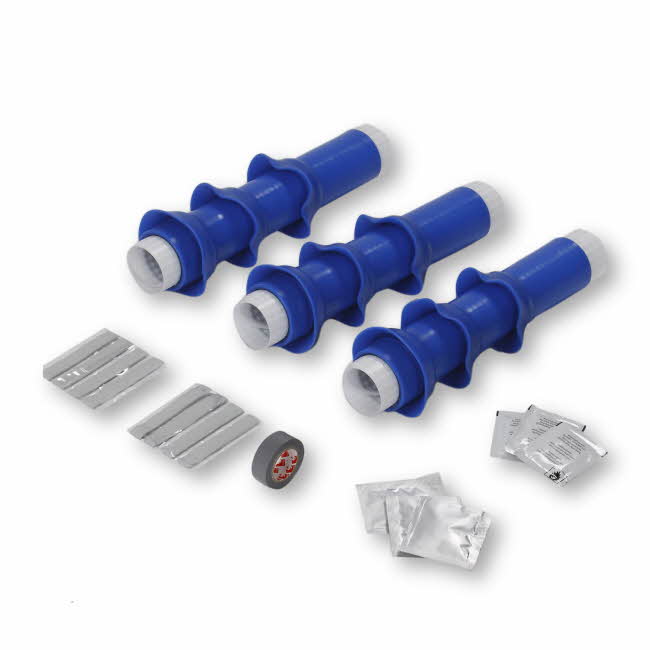

The kit is without cable lugs. The kit includes: mastics, tapes, cleaning and grinding materials, insulating anti-tracking tubes with sheds.
