Description

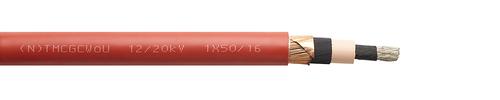

Flexible single core power cable for short connections of mobile transformer substations to overhead lines, also for use in switching stations and control panels.
Installation in cable ducts and tubing with unrestricted indoor or outdoor usage.
- Finely stranded conductor, class 5 EN 60228, DIN VDE 0295
- EPR insulation
- Inner and Outer Layers of semi-conductive rubber
- Spinning of tinned copper wires around each core
- Rubber outer sheath, red
- Tosion +/- 25 deg/m
- Voltage Rating: 6/10kv or 12/20kv
- Min bend radius fixed (xd): 6xd
- Min bend radius moved (xd): 15xd
- Temperature at conductor max : +90deg
